Hot Air Air-Jacketed 环氧乙烷灭菌器
Advanced high-efficiency thermal technology for precision medical sterilization.
Rapid Thermal Response
Due to the low specific heat capacity of air, our system achieves exceptionally fast heating and cooling rates. This significantly boosts throughput for facilities handling diverse product lines.
Extended Life & Low Maintenance
这 Air-Jacket technology eliminates water-related corrosion. No rust, no water leakage risks, and minimal maintenance requirements for the jacket structure.
Maximum Floor Space Efficiency
No side-clearance required for maintenance. The compact design allows for side-by-side installation, maximizing your workshop's effective utilization rate.
Superior Fatigue Resistance
Engineered for high-frequency pulsating heating and aeration. The structure withstands thermal stress far better than traditional water-jacketed systems.

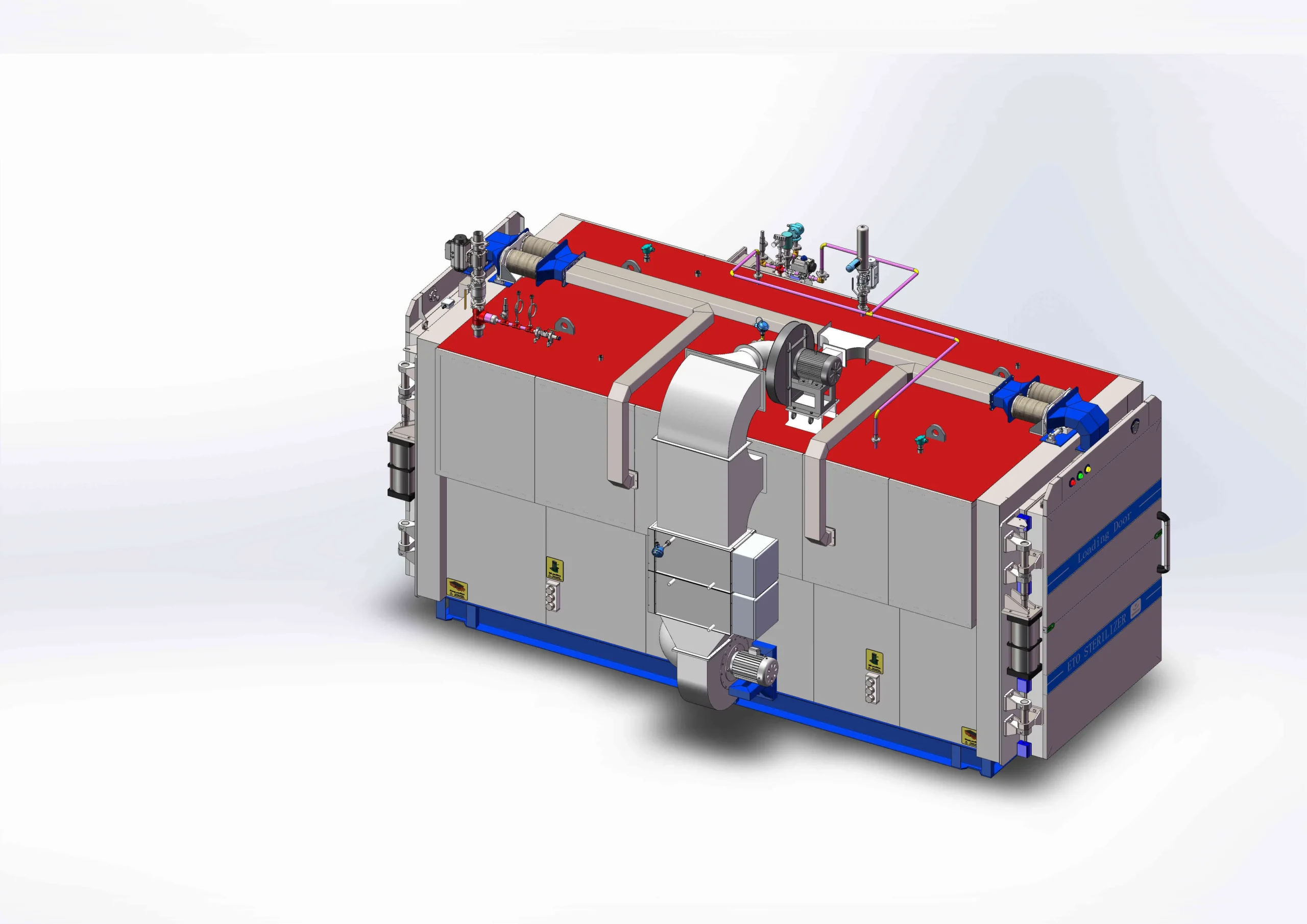

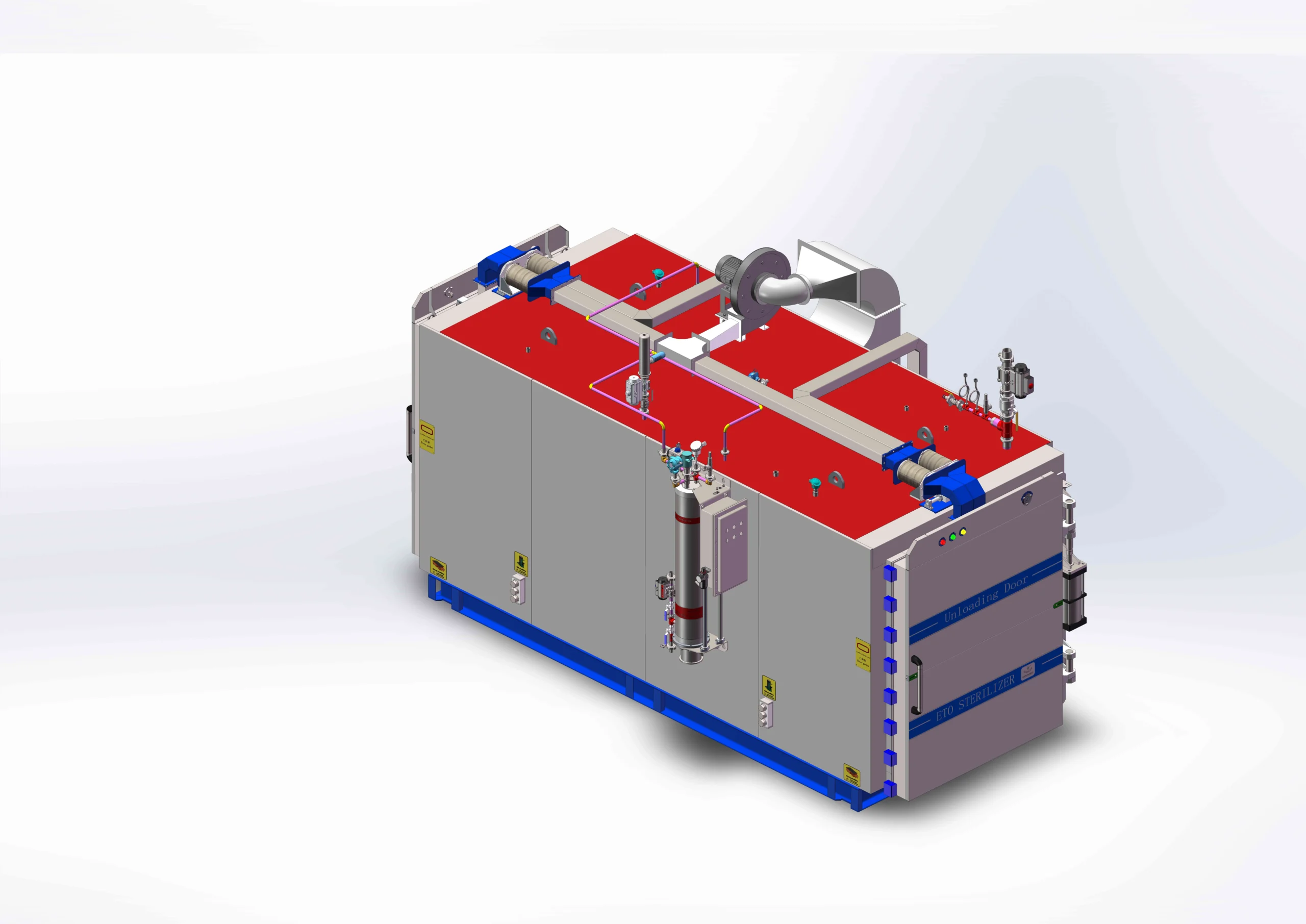

360° Technical Perspective

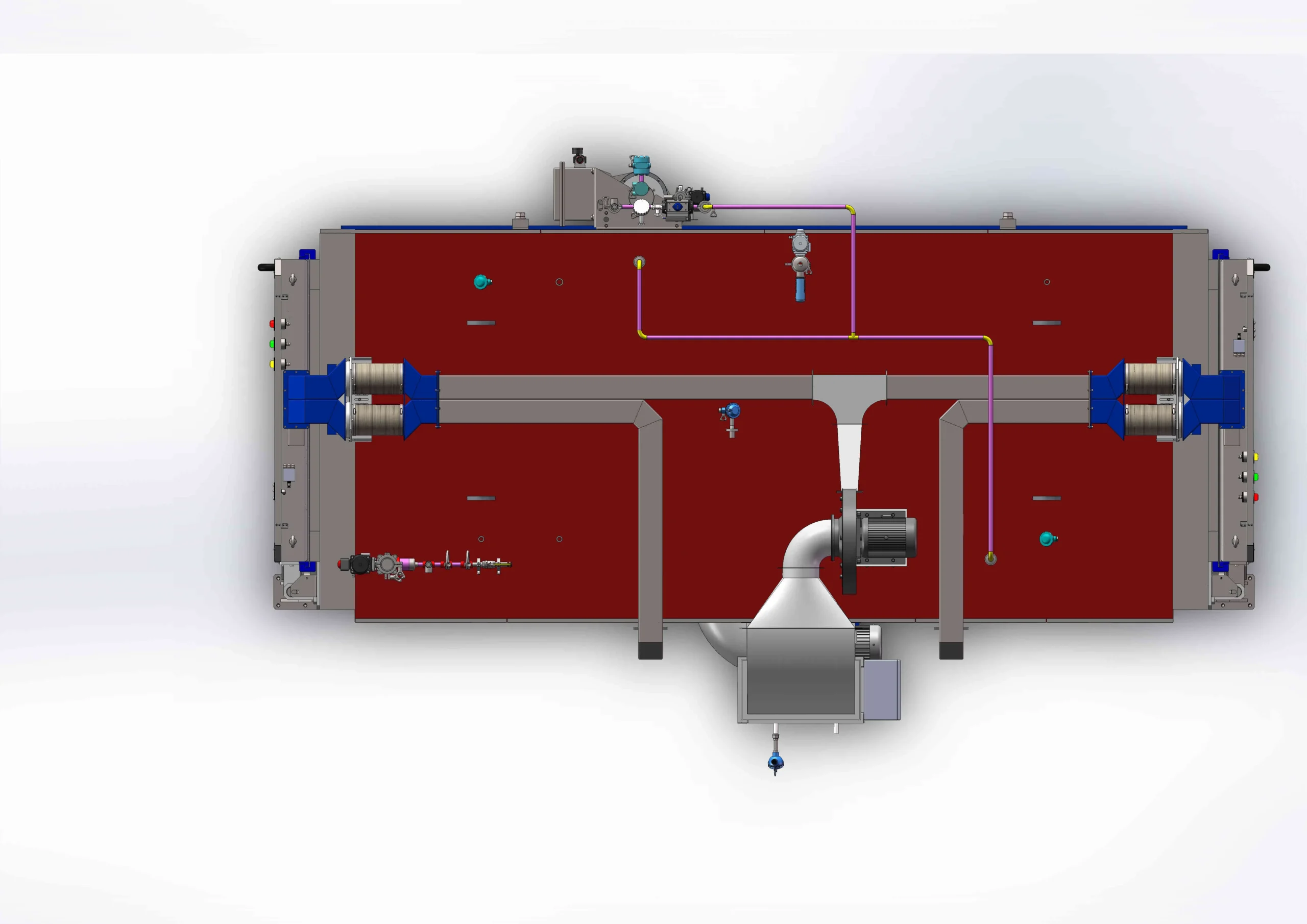

Top View (Space Saving)
Side View (Compact Design)
Front View (Operation Panel)
Engineering Excellence & Considerations
Acoustic Management
While air circulation fans generate more sound than water pumps, BOCON's noise-reduction technology suppresses sound levels to approx. 40 dB, ensuring a quiet workplace.
CFD Optimized Design
Designing for air requires mastery of fluid dynamics. Our engineers use Computational Fluid Dynamics to ensure perfect temperature uniformity throughout the chamber.
Professional 环氧乙烷灭菌器 Comparison
Analyzing BOCON’s Industrial Ethylene Oxide Sterilization Solutions vs. Industry Standards
1. ETO Sterilizer Vacuum Pump Technology
| Technical Feature | BOCON ETO Sterilizer | Conventional ETO Units |
|---|---|---|
| Vacuum Pump Configuration | Dry Screw / Water Ring / Oil Ring (Selectable) | Standard Water Ring Pump Only |
| Ultimate Vacuum Depth | Up to -101.27 千帕 (Dry Screw System) | Approx. -90 千帕 |
| Resource Consumption | Low water usage (with Gas-Water Separator) | High continuous water consumption |
| Operational Maintenance | Minimal maintenance, no oil-emulsification | Frequent oil/seal changes required |
2. Water-Saving Efficiency (20m³ ETO Chamber)
3. ETO Sterilizer Chamber & Jacket Design
| Chamber Parameters | BOCON Solution | Standard Industry Units |
|---|---|---|
| Heating Method | Advanced Air Jacket (Hot Air) / Water Jacket | Basic Water Jacket Only |
| Thermal Ramp Rate | High-speed heating/cooling cycles | Gradual temperature transitions |
| System Lifespan | Corrosion-resistant, no leakage risk (Air) | Vulnerable to rust and jacket leaks |
| Factory Footprint | Compact, side-by-side multi-unit layout | Requires significant maintenance clearance |
4. Integrated ETO Gas Abatement (EG Burner)
| Waste Management | BOCON EG Burner System | Traditional EO Scrubbers |
|---|---|---|
| Tail Gas Treatment | Gas + Liquid waste combustion | Chemical scrubbing or gas-only burner |
| Energy Recycling | High-efficiency heat recovery (flue gas) | Waste heat is lost to the atmosphere |
| Liquid Waste Handling | Integrated treatment for zero-liquid discharge | Secondary treatment for scrubber effluent |
5. Centralized Heating for ETO Sterilization Plants
| System Design | BOCON Centralized Solution | Independent Unit Heating |
|---|---|---|
| Redundancy Design | Centralized dual-pump backup system | Single pump per ETO machine |
| Process Continuity | Non-stop operation during maintenance | Cycle aborts if individual pump fails |
BOCON ETO 灭菌器规格
全球标准合规性: 国际标准化组织 11135, 在 1422, CE, 国际标准化组织 13485. 全力支持 胖的, SAT, 数据Q, 智商, 氧气质量, 质子Q 验证.
环氧乙烷灭菌器 常问问题
有关我们的工业灭菌解决方案的常见问题.
- 高渗透率: 由于 EO 气体的渗透特性，非常适合大容量灭菌.
- 最终包装: 最终包装后灭菌，避免二次污染.
- 材料安全: 低温加工保持产品原有特性.
- 全球信托: 安全有效使用的悠久历史，已验证约 50,000 种医疗器械.
- 低维护成本: 专为工业规模而设计，运营和维护成本低.
我们的 工业环氧乙烷灭菌器 解决方案适用于多种产品. 具体咨询, 请 联系我们.
- 内窥镜: 支气管镜, 膀胱镜, 食管镜, 纵隔镜, ETC.
- 塑料和橡胶: 手套, 注射器, 输液装置, 导管, 和袋子.
- 仪器仪表: 起搏器, 人造骨, 缝合线, 骨板, 和医用电钻.
- 麻醉容器: 气管插管, 面具, 氧气帐篷, 和雾化器.
- 纺织品: 手术衣, 帽子, 寝具, 纱布, 和绷带.
